Product details:

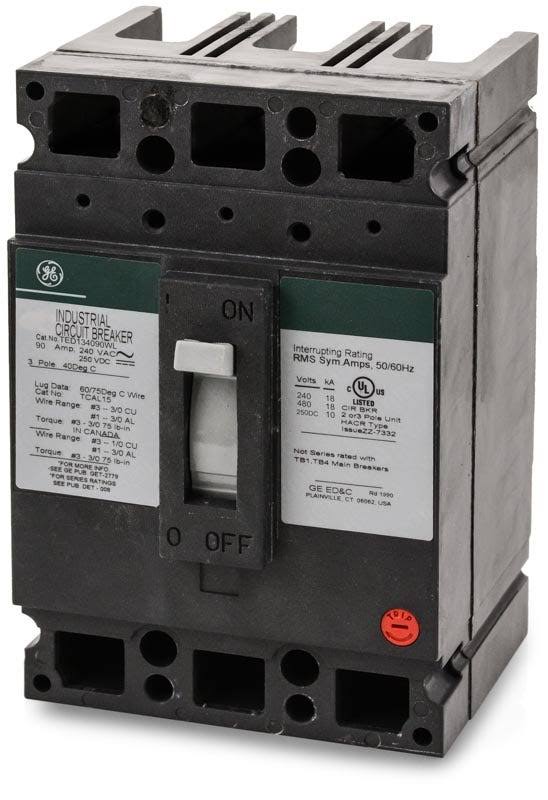

The interrupt rating of this circuit breaker is 18-Kilo-Amps at 480-Volt AC. It has a dimension of 4-1/8-Inch x 3-3/8-Inch x 6-5/16-Inch. This 3-Phase circuit breaker with line and load side lug terminal connection, employs LI, non-interchangeable, fixed instantaneous and thermal-magnetic trip for ensuring reliable performance. It supports feed-thru mounting to make installation easier. This E150-frame standard continuous current rated circuit breaker is perfect for use in industrial applications. It withstands a temperature rating of 60/75 deg C. Circuit breaker is UL listed, CSA certified and HACR rated.
